Abel Reels: Current Lineup and Legacy Models

Abel documents six current reel families, from the light trout-focused TR to the high-capacity SDX. The useful question is not which Abel reel is universally best, but which size, drag system and intended role match your rod, line, backing and water.

For the most versatile starting point, choose the Abel ROVE.

This guide separates the current lineup from four notable legacy models and editions. It also keeps product generations distinct: ROVE has its own current specifications, while SDS and the larger SDX serve separate capacity ranges.

Quick terms: “WF” means weight-forward fly line, while backing is the reserve line wound behind it. A large arbor has a larger-diameter spool core and retrieves more line per turn; a palming rim lets you add resistance with your palm. “Spey” here refers to two-handed casting setups.

Current Abel reels at a glance

Six current Abel reel families, ordered from light trout use to the largest heavy-line applications. Roles and drag descriptions are manufacturer-documented.
Family	Role	Sizes	Drag design	Weight	Action
TR	Lightweight trout reel	2/3, 4/5, 5/6	Integrated click-pawl/clicker with a pronounced palming rim for manual drag control	4.19, 4.65 or 5.19 oz	Check Trident Price
VAYA	Large-arbor multi-use reel with size-specific fly-pattern porting	4/5, 5/6, 7/8	Five-disc alternating carbon/stainless-steel drag stack	5.15, 5.45 or 5.60 oz	Check Trident Price
SDF	Sealed Drag Fresh for trout/freshwater use	4/5, 5/6, 6/7	Sealed stainless-steel/carbon-fluoropolymer system; manufacturer states zero-to-10-pound drag range	5.02, 5.42 or 5.63 oz	Check Trident Price
ROVE	High-capacity travel/adventure reel for single- and two-handed rods	4/6, 5/7, 7/9, 9/11, 11/12+	Field-serviceable Abel cork drag with double-pawl engagement	6.9–10.8 oz	Check Trident Price
SDS	Sealed Drag Salt for saltwater gamefish	7/8, 9/10, 11/12	Sealed alternating carbon-fluorocarbon-polymer composite and stainless-steel disc system	8.88, 9.77 or 10.00 oz	Check Trident Price
SDX	Largest high-capacity Abel family for heavy saltwater and Spey applications	9/11, 12/14	Sealed alternating carbon and stainless-steel stack	10.5 or 11.5 oz	Check Trident Price

How to choose an Abel reel

Start with the fishing job, then use the exact size row. Abel positions the TR as a lightweight trout reel, and its click-pawl/clicker relies on a pronounced palming rim for added manual control. Examine it when simplicity and light-line use matter more than an adjustable disc drag.

VAYA and SDF overlap in common trout and freshwater line classes, but their manufacturer-defined designs differ. VAYA is the multi-use large-arbor family with a five-disc carbon-and-stainless drag stack. SDF is the Sealed Drag Fresh family, with a sealed stainless-steel/carbon-fluoropolymer system. Select between them by intended water, drag format, the exact capacity row and the reel weight that suits your completed rod setup—not by a blanket verdict.

ROVE covers the widest current size spread. Abel documents it for high-capacity travel and adventure use with single- and two-handed rods, using a field-serviceable cork drag with double-pawl engagement. That makes it a present-day role analog to the older Super Series, but ROVE is not documented as the Super Series successor. Do not assume spool, parts or performance continuity between the two.

For saltwater, SDS begins at 7/8 and extends through 11/12. SDX starts larger, at 9/11, and adds a 12/14. SDX is a current sibling of SDS, not its replacement: SDS remains a separate current family for saltwater gamefish, while Abel positions SDX for its largest high-capacity heavy-saltwater and Spey applications.

Finally, check capacity rather than relying on the size label alone. Two reels that both accept a 5-weight line can provide very different backing allowances. Our fly reel drag systems guide explains the main mechanical differences, but the manufacturer’s configuration table should decide the final line-and-backing fit. If a lower spend is your main constraint, start with our budget fly reel guide; this page is organized around Abel’s models rather than a cost ceiling.

The current Abel reel lineup

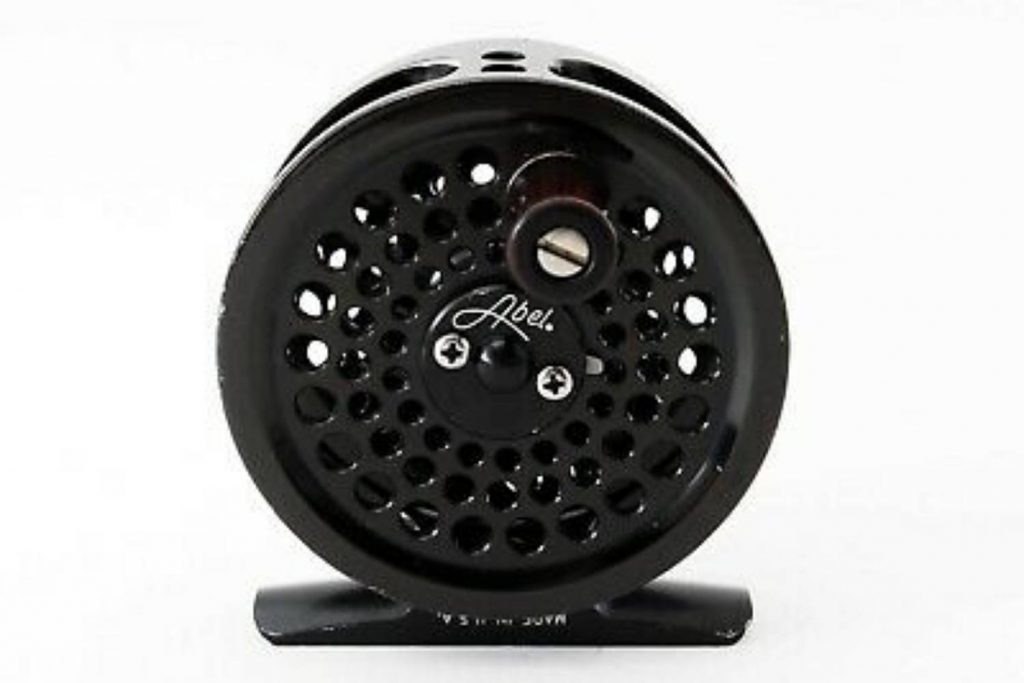

TR

Abel describes the TR as a lightweight trout reel. Its integrated click-pawl/clicker and pronounced palming rim make manual drag control part of the design, so it should not be compared as though it had the adjustable disc system used by VAYA, SDF, SDS or SDX.

The current sizes are 2/3, 4/5 and 5/6, weighing 4.19, 4.65 and 5.19 ounces respectively. Spool diameters are 3.06, 3.29 and 3.68 inches. Capacity changes sharply across the range: the 4/5 row lists WF4 plus 25 yards of 20-pound backing or WF5 plus 15 yards, while the 5/6 lists WF5 plus 110 yards or WF6 plus 100 yards of 20-pound backing.

Choose it forManufacturer-defined lightweight trout use and click-pawl simplicity

Check carefullyBacking capacity differs substantially by size and line

VAYA

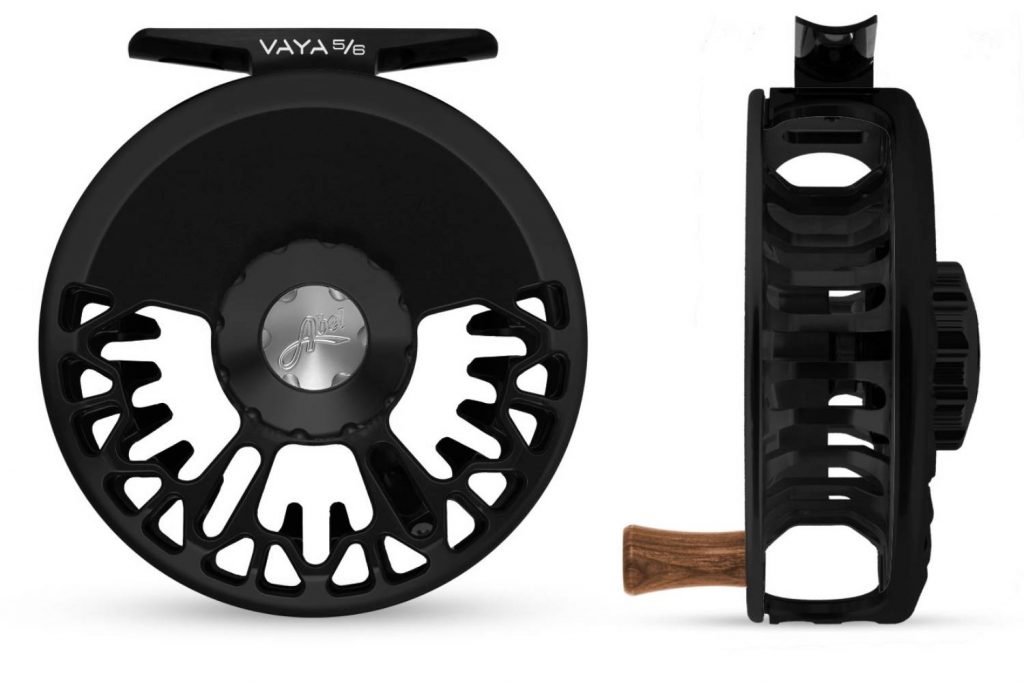

Owned image of an Abel VAYA 5/6; the photo identifies the family and size, not its production date.

Abel positions VAYA as a large-arbor multi-use reel with size-specific fly-pattern porting. The documented drag is a five-disc stack alternating carbon and stainless steel. Current sizes are 4/5, 5/6 and 7/8, with listed weights of 5.15, 5.45 and 5.60 ounces.

The 4/5 capacity is WF4 plus 100 yards or WF5 plus 85 yards of 20-pound backing. The 5/6 is shallower at WF5 plus 45 yards or WF6 plus 35 yards. The 7/8 rises to WF7 plus 150 yards or WF8 plus 125 yards. Those differences are a good reason to match the precise row rather than treating VAYA as one interchangeable configuration.

Current sizes4/5, 5/6 and 7/8

Spool diameter3.360, 3.620 or 3.880 in

SDF

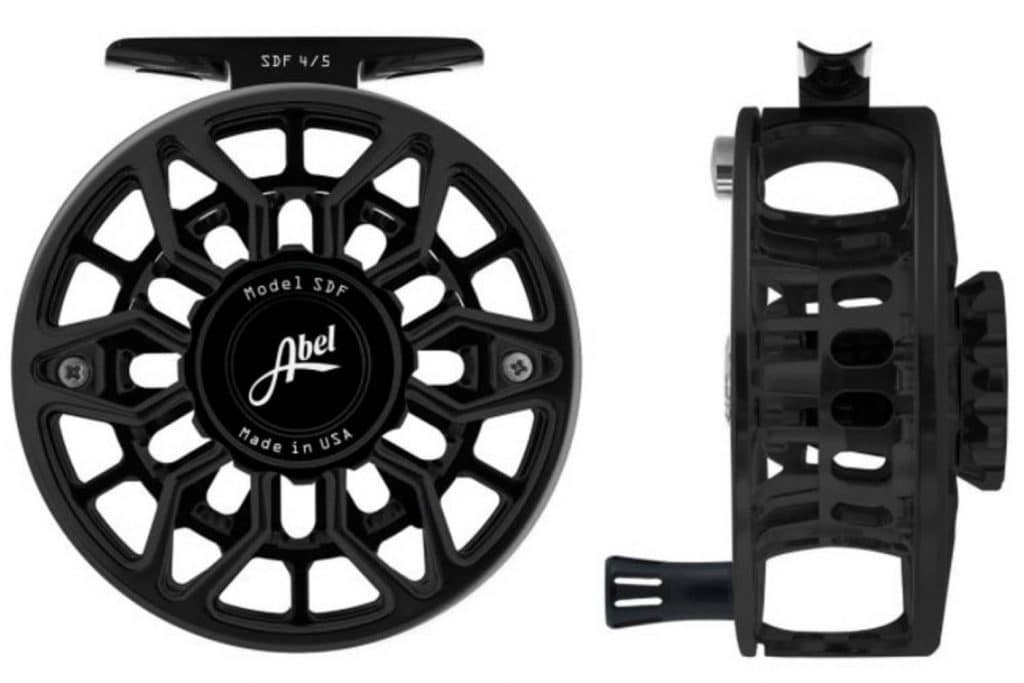

Owned image of an Abel Model SDF 4/5 in a black finish; the photo does not establish current-generation continuity.

SDF means Sealed Drag Fresh, and Abel documents it for trout and freshwater use. Its sealed drag combines stainless steel and carbon-fluoropolymer; the manufacturer states a zero-to-10-pound drag range. That figure is a manufacturer claim, not a measurement from a new Fly Fisher Pro test.

The current family has 4/5, 5/6 and 6/7 sizes at 5.02, 5.42 and 5.63 ounces. Spool diameters are 3.260, 3.610 and 3.735 inches. The 4/5 holds WF4 plus 75 yards or WF5 plus 55 yards of 20-pound backing; the 6/7 reaches WF6 plus 165 yards or WF7 plus 145 yards.

Choose it forManufacturer-defined trout and freshwater use with a sealed drag

Not interchangeable withSDS specifications or saltwater sizing

ROVE

ROVE is Abel’s high-capacity travel and adventure family for single- and two-handed rods. Its field-serviceable Abel cork drag uses double-pawl engagement. The five sizes—4/6, 5/7, 7/9, 9/11 and 11/12+—make it the broadest line-class spread in the current catalog.

Listed weights are 6.9, 8.2, 8.5, 10.5 and 10.8 ounces. Spool diameter grows from 3.67 inches on the 4/6 to 4.967 inches on the 11/12+. The documented capacities also reflect its high-capacity role: the 4/6 ranges from WF4 plus 145 yards to WF6 plus 115 yards of 20-pound backing, while the 11/12+ lists WF11 plus 330 yards or WF12 plus 300 yards of 30-pound backing.

ROVE can occupy some of the fishing roles once associated with the Super Series, especially where a serviceable cork drag and broad size range are wanted. That is a practical role comparison only, not a manufacturer-documented succession claim.

SDS

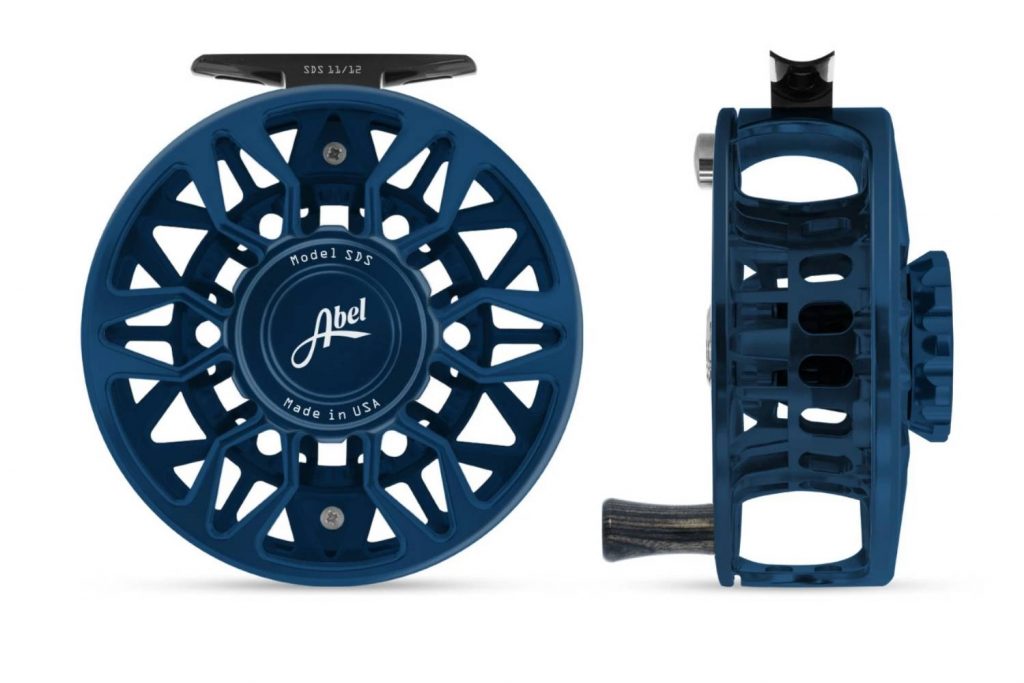

Owned image of an Abel Model SDS 11/12 in a blue finish; the photo does not establish current-generation continuity.

SDS means Sealed Drag Salt. Abel documents the family for saltwater gamefish and describes a sealed disc system alternating carbon-fluorocarbon-polymer composite and stainless steel. The current sizes are 7/8, 9/10 and 11/12, weighing 8.88, 9.77 and 10.00 ounces.

The 7/8 capacity is WF7 plus 260 yards or WF8 plus 240 yards of 20-pound backing. The 9/10 lists WF9 plus 240 yards or WF10 plus 250 yards of 20-pound backing. At 11/12, the table moves to 30-pound backing: WF11 plus 285 yards or WF12 plus 250 yards.

Manufacturer roleSaltwater gamefish

Current size range7/8 through 11/12

SDX

SDX is Abel’s largest high-capacity family for heavy saltwater and Spey applications. Its sealed drag uses an alternating carbon and stainless-steel stack. The lineup contains two extra-large-arbor sizes: 9/11 at 10.5 ounces and 12/14 at 11.5 ounces.

Both sizes list a 1.165-inch spool width. The 9/11 has a 5.00-inch spool diameter and capacities of WF11 plus 250 yards of 30-pound backing or WF11 plus 400 yards of 50-pound gel-spun backing. The 12/14 has a 5.50-inch spool diameter and lists WF14 plus the same two backing alternatives and yardages.

Choose between SDS and SDX by exact line class, capacity and application. SDX does not replace SDS; the two are current siblings with overlapping but distinct manufacturer-defined jobs.

Legacy Abel reels and artist editions

The following reels belong to clearly defined historical generations or limited editions. They are not part of Abel’s current lineup. Their specifications and any period observations apply only to those exact products, not to a current Abel family.

Super Series: the 2017 redesign

The Super Series family dates to 1999, but the relevant later generation is the 2017 redesign—not the original design or older mixed-generation specification rows. Abel’s archived material says the 2017 reel became lighter and gained a quick-change spool by eliminating the former removable locknut and drag knob. The generation used a cork drag, double-pawl engagement and user-convertible retrieve.

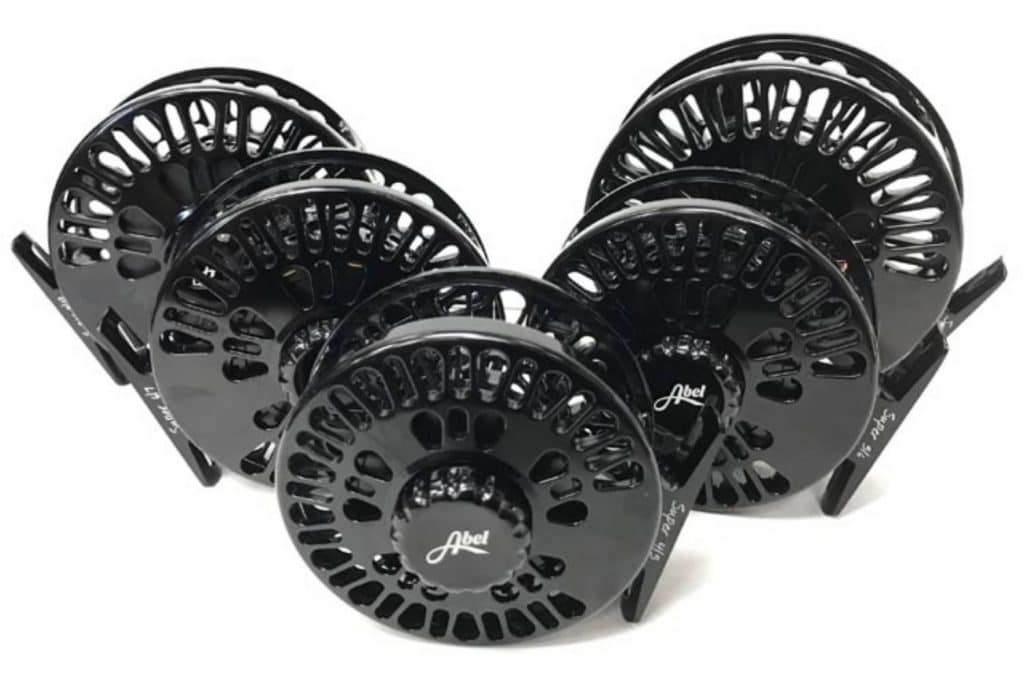

Owned image of five Abel reels from the legacy Super Series section; exact sizes are not identifiable.

The Super Series is not in the current catalog, and its exact discontinuation date is not established. ROVE is the closest current role analog in this guide, but Abel does not call it a successor. Do not assume parts, spools, sizes or performance are shared.

Mooching Reel: the 2017 upgrade

Abel introduced the Mooching family in 2013 after a year of manufacturer field testing, then explicitly upgraded it for 2017. That generation break matters: an original 2013–2016 reel should not be assumed to match the 2017 version.

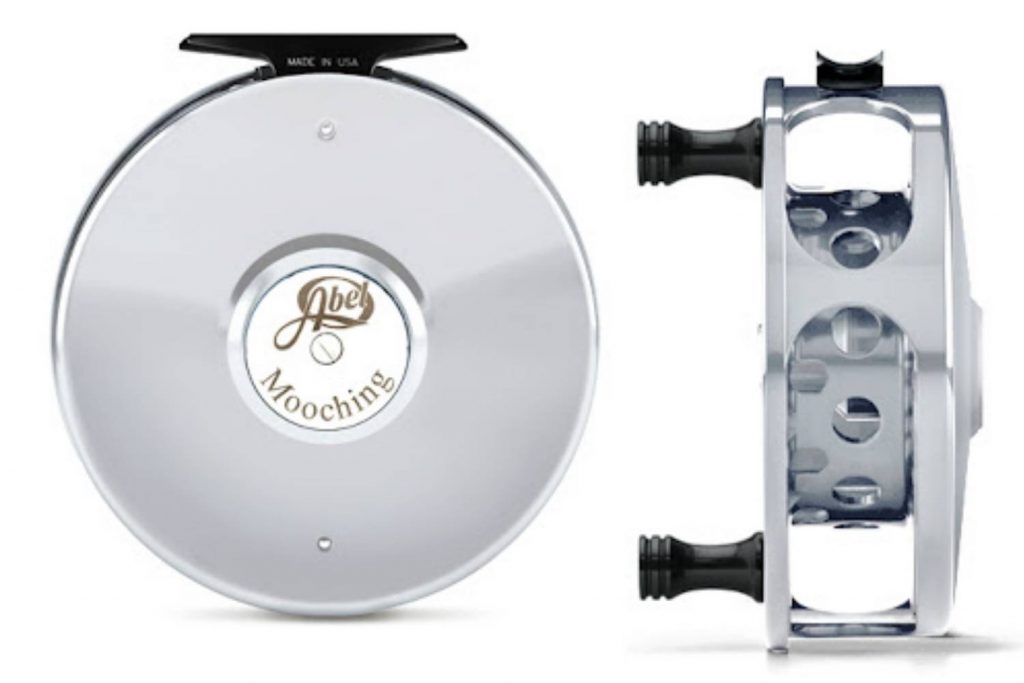

Owned image of an Abel Mooching reel; its size and production date are not identifiable.

Archived first-party specifications list the 2017-upgraded reel at 14.5 ounces, with a 4.700-inch spool diameter and 1.000-inch spool width; capacity was listed as N/A. Abel documented a one-piece 303 stainless-steel spindle and frame-cap assembly, 6061-T651 aluminum main components, a cork drag with an oversized milled-aluminum knob and counterbalanced double handles. The family is now legacy, with no verified current successor.

AC/DC limited edition: 300 units in 2019

The 2019 AC/DC collaboration was a 300-unit serialized edition on the 2017 Super Series platform, offered in Super Series 5/6 freshwater and 7/8 saltwater sizes. Archived Abel material documents a hand-polished, hand-anodized satin-smoke effect with AC/DC branding, a Satin Black spool and a custom-machined aluminum handle.

Owned image of the Abel AC/DC and Johnny Cash limited-edition artwork; the underlying reel platforms and sizes are not identifiable.

The shared photograph shows the AC/DC artwork and “1 of 300” numbering, but not the reel’s platform, size, condition or use history.

Johnny Cash limited edition: 250 units

The Johnny Cash collaboration was a separate 250-unit serialized edition, also documented on the 2017 Super Series platform in 5/6 and 7/8 sizes. Abel’s archived page describes a hand-polished, hand-anodized Johnny Cash graphic, a high-gloss black spool and a custom-machined platinum handle. An exact launch date was not established.

The same photograph shows the CASH artwork, guitar motif, signature and “1 of 250” numbering, but not the reel’s platform, size, condition or use history.

Care, warranty and where Abel reels are made

Care starts with the exact reel family

Abel’s care material repeatedly emphasizes removing sand and grit and rinsing a reel after saltwater exposure. The detailed lubrication and service instructions vary by reel type, so follow the current manufacturer guidance for the exact family rather than applying old Super Series, classic click-pawl or sealed-drag instructions to every Abel reel. Store the reel protected and do not treat the word “sealed” as permission to ignore cleaning.

Warranty coverage has ownership limits

Abel’s current policy describes a lifetime defect warranty for the original owner of an authentic product bought through an authorized Abel dealer. The policy is non-transferable and covers repair or replacement for defects in materials or workmanship as determined by Abel. Normal wear, misuse and finish damage are outside or limited by that promise, and service costs can apply. A used or legacy reel therefore needs case-by-case confirmation; age or brand name alone does not establish coverage or parts support.

Current production is based in Montrose, Colorado

Abel says the brand was established in California in 1988 and has been headquartered in Montrose, Colorado since 2017. Its current pages say Abel reels are designed, machined, anodized and assembled in Montrose from solid bars of aluminum, and current model pages state Made in USA. Mayfly Outdoors operates Abel Reels and Ross Reels as distinct brands, so specifications and model history should not be transferred between them.

Abel reels FAQ

What Abel reel families are current?

The manufacturer-documented current lineup contains six families: TR, VAYA, SDF, ROVE, SDS and SDX. Super Series, Mooching Reel, the 2019 AC/DC edition and the Johnny Cash edition belong in legacy or archive context, not in the current comparison.

Should I choose TR, VAYA or SDF for trout?

Choose by the drag and exact setup. TR is Abel’s lightweight trout reel with a click-pawl/clicker and palming rim. VAYA is a multi-use large-arbor reel with a five-disc drag stack. SDF is the sealed-drag freshwater family for trout and freshwater use. Then match size, weight and capacity to your rod, line and backing.

What is the difference between SDF and SDS?

SDF is Sealed Drag Fresh, documented for trout and freshwater in 4/5, 5/6 and 6/7 sizes. SDS is Sealed Drag Salt, documented for saltwater gamefish in 7/8, 9/10 and 11/12 sizes. They are related design families, but their sizes, drag descriptions and specifications are not interchangeable.

Is ROVE the successor to Super Series?

No official successor relationship is documented. ROVE is a useful current role analog because it spans a wide range and uses a field-serviceable cork drag, but that does not establish shared parts, spool compatibility, dimensions or inherited performance.

Did SDX replace SDS?

No. SDS and SDX are both current. SDS covers 7/8 through 11/12 for saltwater gamefish; SDX covers 9/11 and 12/14 for Abel’s largest high-capacity heavy-saltwater and Spey applications. SDX is an SDS sibling, not a successor.

Are Abel reels made in the USA?

Abel’s current model pages state Made in USA, and the company says its reels are designed, machined, anodized and assembled in Montrose, Colorado. That current manufacturing statement should not be used to guess the origin or construction of an unidentified older reel without exact-generation evidence.

Does Abel’s lifetime warranty transfer with a used reel?

No. Abel states that its lifetime defect warranty applies to the original owner and is non-transferable, with authorized-dealer purchase required. Buyers of used and legacy reels should confirm service and parts options directly for the exact model and condition.

Are the AC/DC and Johnny Cash reels current models?

No. They are separate legacy limited editions: 300 serialized AC/DC reels and 250 serialized Johnny Cash reels. Neither is a current catalog family.

Final recommendation

Our final recommendation is the Abel ROVE.

First-party sources

Current identity, specifications, care, warranty and manufacturing details use the linked Abel and Mayfly Outdoors sources. Legacy details use archived Abel pages.
